Refine Search > ENCORDER > JES2016G
Product Info
| Part Number |
JES2016G
|
| Type |
Incremental Type |
Product Detail
| Operating force |
230 ± 70 gf |
| Operating direction |
Top push, Side push |
Top push |
|
Horizontal, Vertical
|
Vertical |
| Shaft Color |
Black |
| Operating life |
30000 |
| Water Proof |
|
| Travel |
Full |
|
|
On
|
|
| Operating type |
Incremental, Absolute |
|
| Operating temperature range |
-20 ~ 70 °C |
| Rating |
DC 10V 1mA |
| Dimensions |
20mm * 18.7mm |
| Length |
28.1mm |
| Circuit |
4 Bit |
| Electrical performance |
Insulation resistance
|
50 |
| Voltage proof |
50 |
| Contact resistance |
10 |
| Environmental performance |
Cold
|
-40 ± 2 °C 500Hr |
|
Dry
|
85 ± 2 °C 500Hr |
|
Damp
|
60 ± 2 °C 90% 240Hr |
Package Info
| Number of Packages |
75 |
| Packing Type |
Tray |
| Number of Packages (1c/t) |
1200 |
| Package Measurements (mm) |
470 * 360 * 290 |

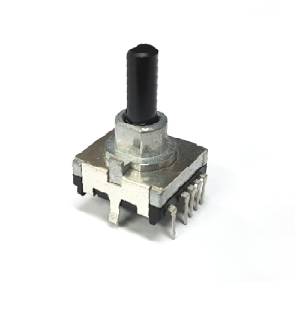

Product Image

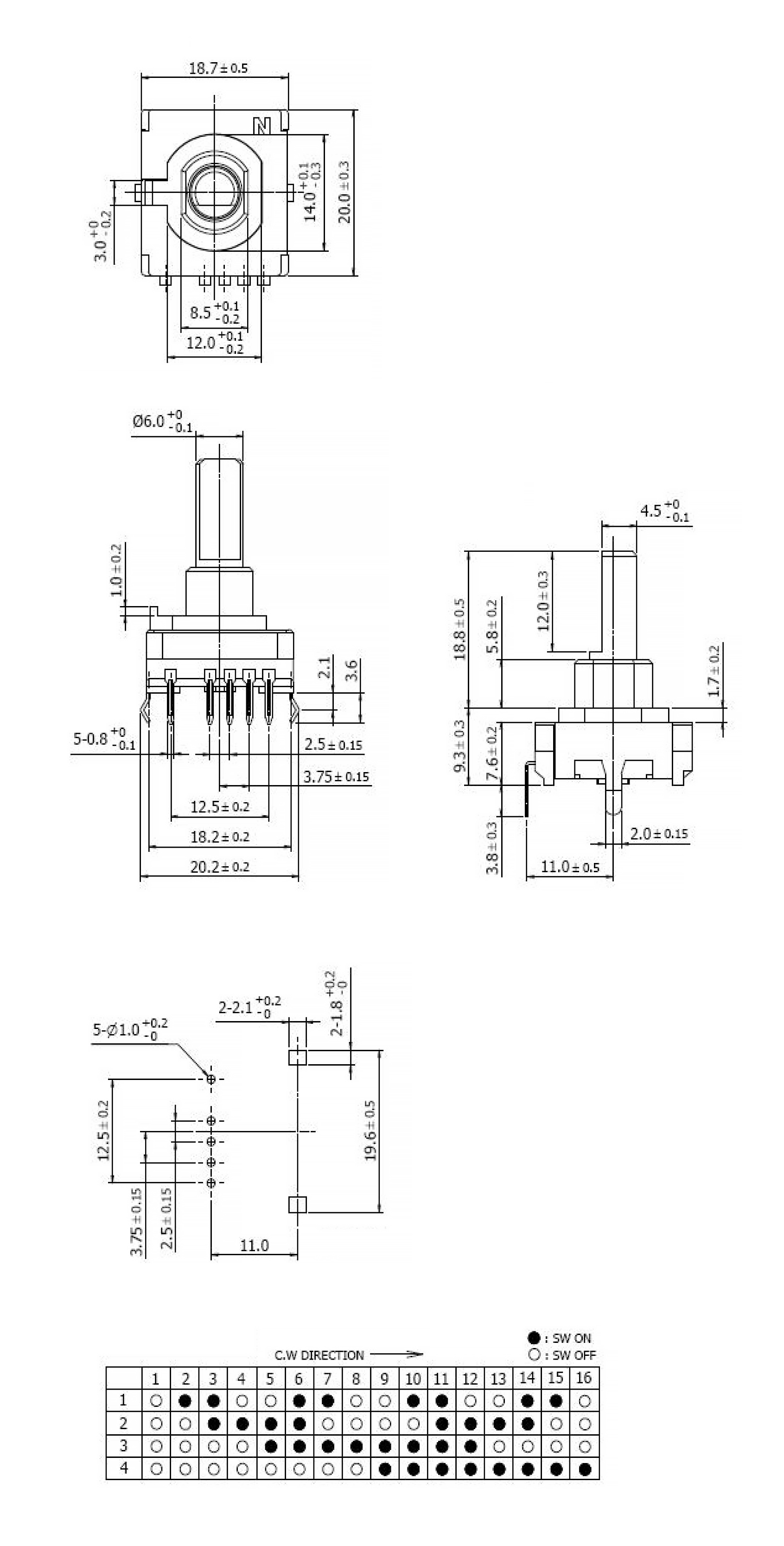

Product floor plan
